Shasta Travel Trailers

Lightweight Travel Trailers - Affordable Quality ... Rich Heritage

Shasta offers a wide variety of quality affordable lighter weight floorplans that are packed with convenience and value. Designed for couples and families to get away from it all and enjoy some well-deserved rest and relaxation. Shasta has been providing memories to campers for generations. Our well laid out interiors are bright and airy with modern woodgrain cabinetry, LED interior lights and residential styling countertops. You will absolutely love the large stainless steel residential refrigerator. You may want to add the optional free standing dinette with 4 chairs or LED fireplace to spark up your interior.

RV Business 2021 Must See RV Care Camps, fighting cancer and making memories

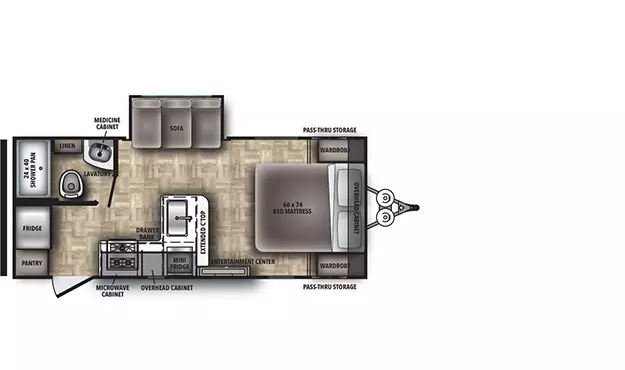

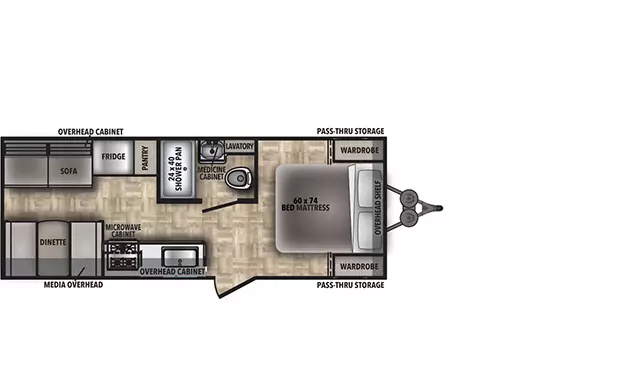

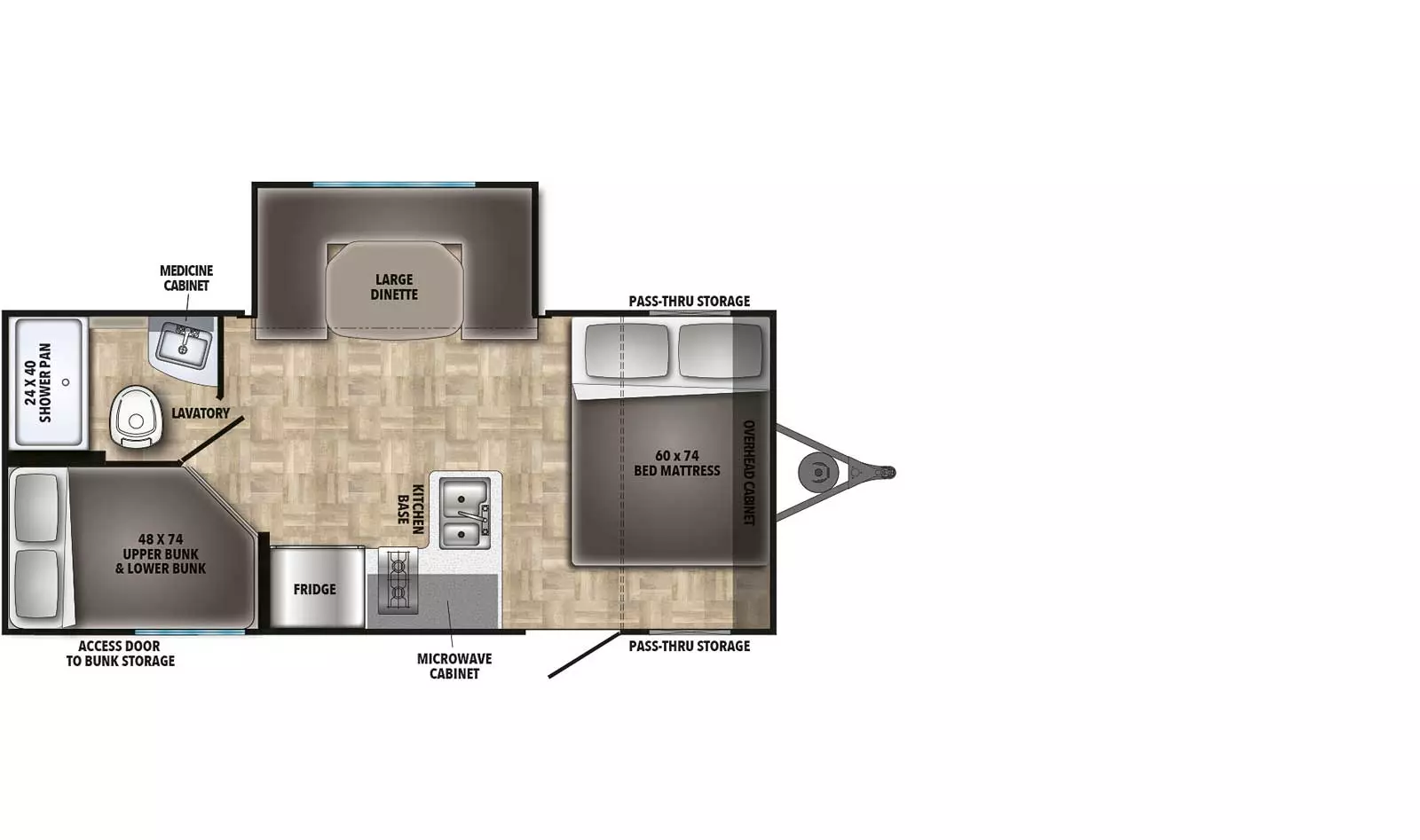

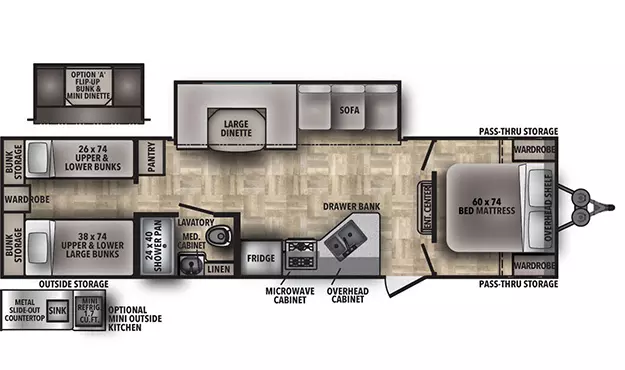

Floorplans

Print

Shasta Travel Trailers
* MSRP is based on a Standard Built Coach (base price plus common options), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.


Specifications

Print

Floorplan: 18BH : Shasta Travel Trailers 18FQ : Shasta Travel Trailers 20RB : Shasta Travel Trailers 21CK : Shasta Travel Trailers 25RB : Shasta Travel Trailers 25RS : Shasta Travel Trailers 26BH : Shasta Travel Trailers 26DB : Shasta Travel Trailers 30QB : Shasta Travel Trailers 31OK : Shasta Travel Trailers 32DS : Shasta Travel Trailers
Hitch Weight:350 lb.325 lb.455 lb.500 lb.580 lb.690 lb.480 lb.580 lb.780 lb.700 lb.730 lb.
GVWR:5,050 lb.5,050 lb.6,350 lb.5,750 lb.6,750 lb.6,750 lb.6,250 lb.6,950 lb.7,750 lb.7,750 lb.9,530 lb.
UVW:3,229 lb.3,254 lb.4,417 lb.3,928 lb.5,238 lb.4,928 lb.4,443 lb.5,318 lb.6,126 lb.6,203 lb.7,550 lb.
CCC:1,821 lb.1,796 lb.1,933 lb.1,822 lb.1,512 lb.1,822 lb.1,807 lb.1,632 lb.1,624 lb.1,547 lb.1,980 lb.
Exterior Length:22' 6"22' 6"23' 6"25' 7"29' 7"29' 8"29' 8"31' 0"35' 5"35' 5"35' 11"
Exterior Height:10' 6"10' 6"11' 3"11' 3"11' 3"11' 3"11' 3"11' 3"11' 5"11' 5"11' 8"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.50.00 gal.
Gray Water:36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.72.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.
Black Water:36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.36.00 gal.
Awning Size:12'12'12'16'16'12'12'20'17'17'17'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Shasta RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Shasta RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Shasta Sanitize Station
  • Bumper with Drain Hose Carrier and End Caps
  • Baggage doors with Magnet Latches
  • Straight Axle with electric Brakes
  • E-Z Lube Hubs
  • Radial tires
  • Radius Entry door with Screen
  • Front Diamond Plate Rock Guard
  • Molded Rain Gutter with Extra Long spouts
  • Black-Framed Radius Safety Glass Windows
  • Back-Up Camera Prep
  • Solar Panel Prep
  • Wi-Fi Prep
  • Spare tire & carrier
  • XL Grab Handle
  • Outside Shower
  • Stabilizer Jacks
  • Cable Hook-up
  • LED Interior Lights
  • Pocket-Bored and Screwed Cabinets
  • Full Extension Ball Bearing Drawer Guides
  • Blackout Shades in Bedroom
  • Box Valances in Living Area
  • Jack Knife Sofa
  • USB Charging Stations
  • Cable TV Hook-up in Living Area and in Bedroom
  • RG6 Coaxial Cable
  • Armstrong Tile Flooring
  • Under Bed Storage
  • Sink cover
  • Decorative Bedspread
  • Oversized Stainless Steel Residential Sink with Pull Down Sprayer
  • High-Rise Kitchen Faucet
  • Range Hood with Exhaust Fan
  • Powered Roof Vent
  • Marine Foot Flush Toilet
  • Medicine Cabinet with Mirror
  • Large Sink
  • Shower with Surround
  • Skylight
  • 12V Demand Water Pump
  • Systems Monitor Panel
  • Auto-Ignition Furnace with Wall Thermostat
  • Water Heater Bypass
  • Water System Winterization Kit
  • 18K BTU or 25K BTU Furnace
  • Gas/Electric/DSI Water Heater
  • .024/.030 Aluminum Exterior Skin
  • Radius Wood Rafters
  • R-7 Fiberglass Insulation in All Walls, Floor and Roof
  • Aerodynamic Radius Front Profile
  • 16" On-Center Wood Wall Studs
  • Electric Slide Rooms
  • Diflex PVC roof material with 20 year limited warranty
  • 8’ Exterior Width
  • Cambered Steel I-Beam Frame
  • Carbon Monoxide Detector
  • LP Leak Detector
  • Fire Extinguisher
  • Smoke Alarm
  • CPAP Docking Station
  • Power Tongue Jack
  • Electric Stabilizing Jacks
  • Aluminum Wheels
  • RVQ Grill
  • 30# LP Bottles IPO Standard 20# (N/A on 18' Models)
  • 15K BTU A/C
  • 13.5K BTU Ducted A/C (N/A on 18' Models)
  • Mini Outside Kitchen (25RS, 26BH, 28BH, 30QB)
  • Flip Down Storage Rack
  • 2nd AC Prep (27BH, 28BH, 29RK, 27RL, 30QB, 31OK, 32DS) 26 foot and up
  • 15K BTU Ducted AC
  • 2nd 13.5 BTU AC w/ 50 AMP Service 26 foot and up
  • Heated/Enclosed Underbelly (N/A 18's)
  • Glass Cook-Top & Oven w/LED Lights
  • Hide-A-Bed Sofa IPO Jack-Knife Sofa
  • Fireplace
  • Junior Dinette IPO Lower Bunk (30QB, 32DS, 31OK)
  • Sit-N-Sleep Sofa IPO Lower Bunk (32DS)
  • Free Standing Table/4 Chairs (Deep Slides Only)
  • 8 cu ft Gas/Elec Refrigerator
  • Recliners IPO Rockers (27RL, 29RK)
  • Ramp patio door system (240TH, 260TH)
  • Patio screen wall (240TH, 260TH)
  • Toy Lok (240TH, 260TH)
  • (2) swivel rockers (260TH only)
  • Flip up sofa over wheel well (260TH only)
  • Glass cooktop/oven
  • Solid Step
  • Power Tongue Jack
  • 6 Gallon Gas/Electric DSI HW Heater
  • SS Microwave Oven
  • 13.5 BTU A/C
  • 3-Burner Cook Top Stove with glass cover
  • Pleated Shades
  • High-Rise Faucet w/Sprayer
  • LED Interior Lights
  • Decorative Back Splash
  • Thermal-Foil Kitchen Countertops
  • USB Charging System
  • Zamp Solar Prep Package
  • Power Awning w/LED light
  • Marine Grade Outside Speakers
  • AM/FM Blue-Tooth Stereo w/Speakers
  • 10.7 cu ft Stainless Steel Residential Refrigerator
  • Double 20# LP Bottles w/ABS Cover (N/A on 18’s)
  • Stainless Steel Under Mount Kitchen Sink
  • Wireless Rear Back-Up Camera Prep
  • Front Colored Rock Guard
  • Color Matching Entry and Baggage Doors
  • Decorative Cabinet Pulls
  • Shower & Surround
  • Pre-Wired for Wi-Fi
  • LED Light Above Slide-Outs
  • Roadside Assistance
  • Magnetic Baggage Door Catches

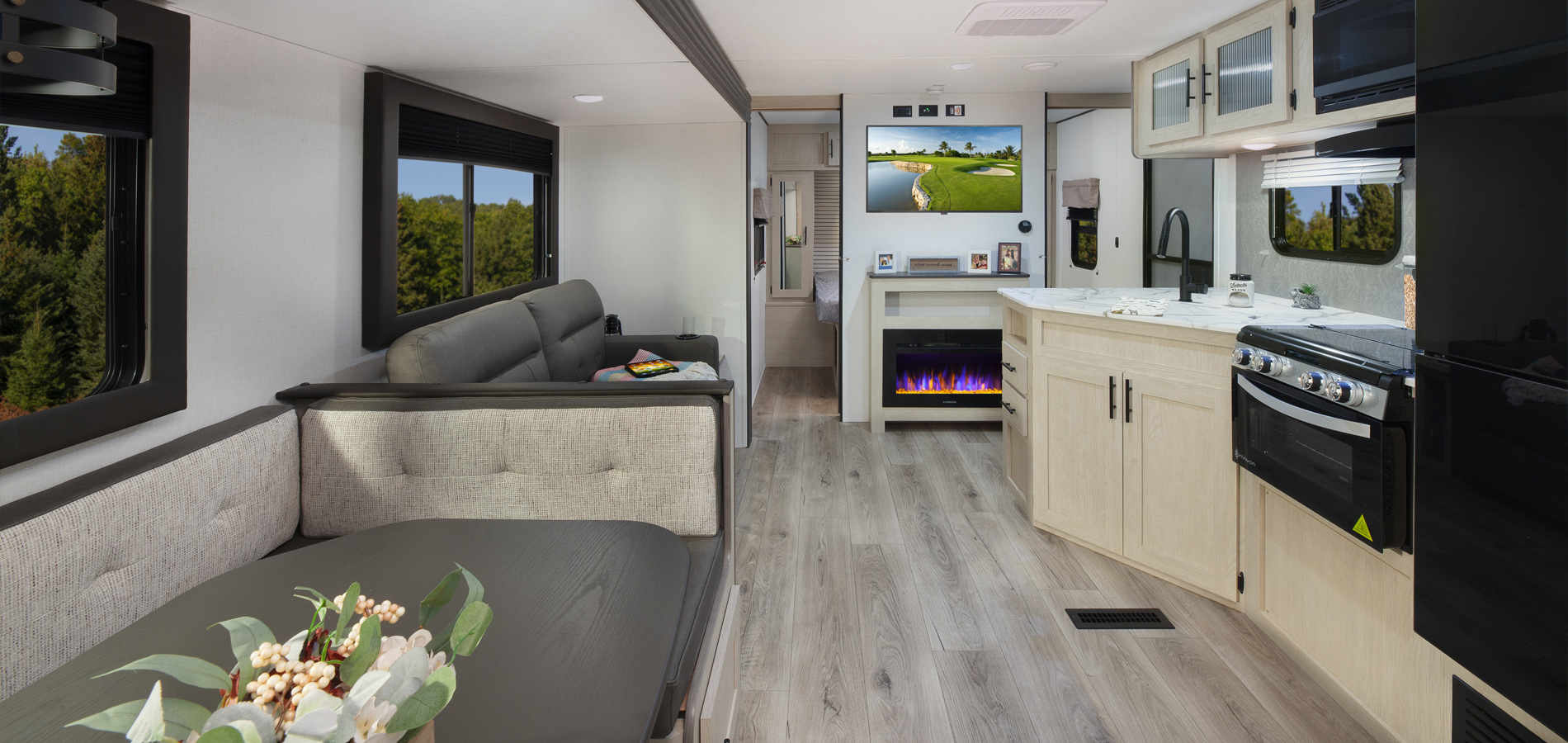

Virtual Tours

  • 18BH
    18BH Main Room
  • 18FQ
    18FQ Main Room
  • 20RB
    20RB Main Room
  • 21CK
    21CK Main Room
  • 25RB
    25RB Main Room
  • 25RS
    25RS Main Room
  • 26BH
    26BH Main Room
  • 26DB
    26DB Main Room
  • 30QB
    30QB Main Room
  • 31OK
    31OK Main Room
  • 32DS
    32DS Main Room


Literature
